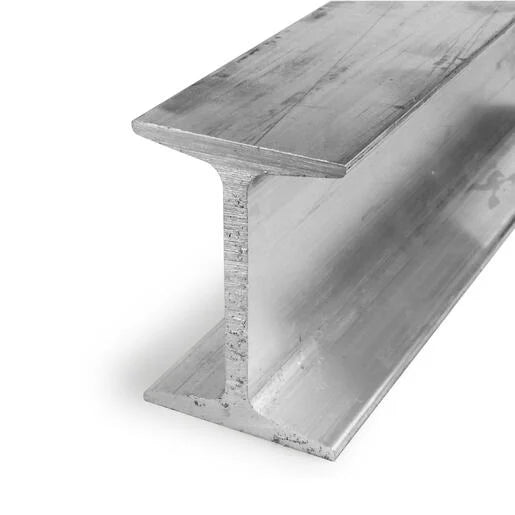

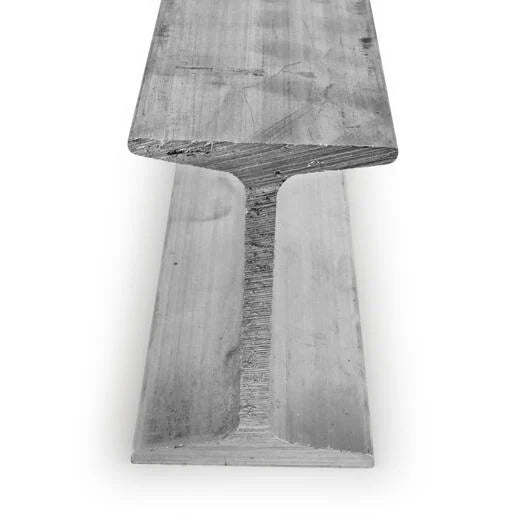

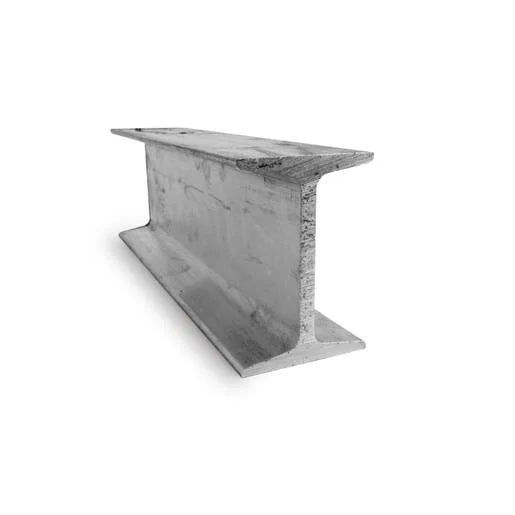

Aluminium I-Beam 101.6mm x 76.2mm x 6.3mm x 8mm 6082 Mill Finish Corrosion Resistant, Ideal for Construction & Engineering

Material: The I-Beam is made of Aluminium, a lightweight metal known for its excellent strength-to-weight ratio, corrosion resistance, and versatility. Aluminium is widely used in various industries due to its durability and suitability for diverse applications.

Weldability: Featuring fair weldability, the Aluminium I-Beam can be effectively joined through welding processes. Proper welding techniques and procedures should be followed to ensure optimal results in fabrication or assembly.

Machinability: The I-Beam exhibits good machinability, meaning it can be easily machined or processed using various tools and methods. This property contributes to the versatility of the material in manufacturing and construction applications.

Shape: The I-Beam has a shape categorized as RSJ (Rolled Steel Joist) or Beams. This shape is well-suited for structural applications, providing strength and support in construction projects.

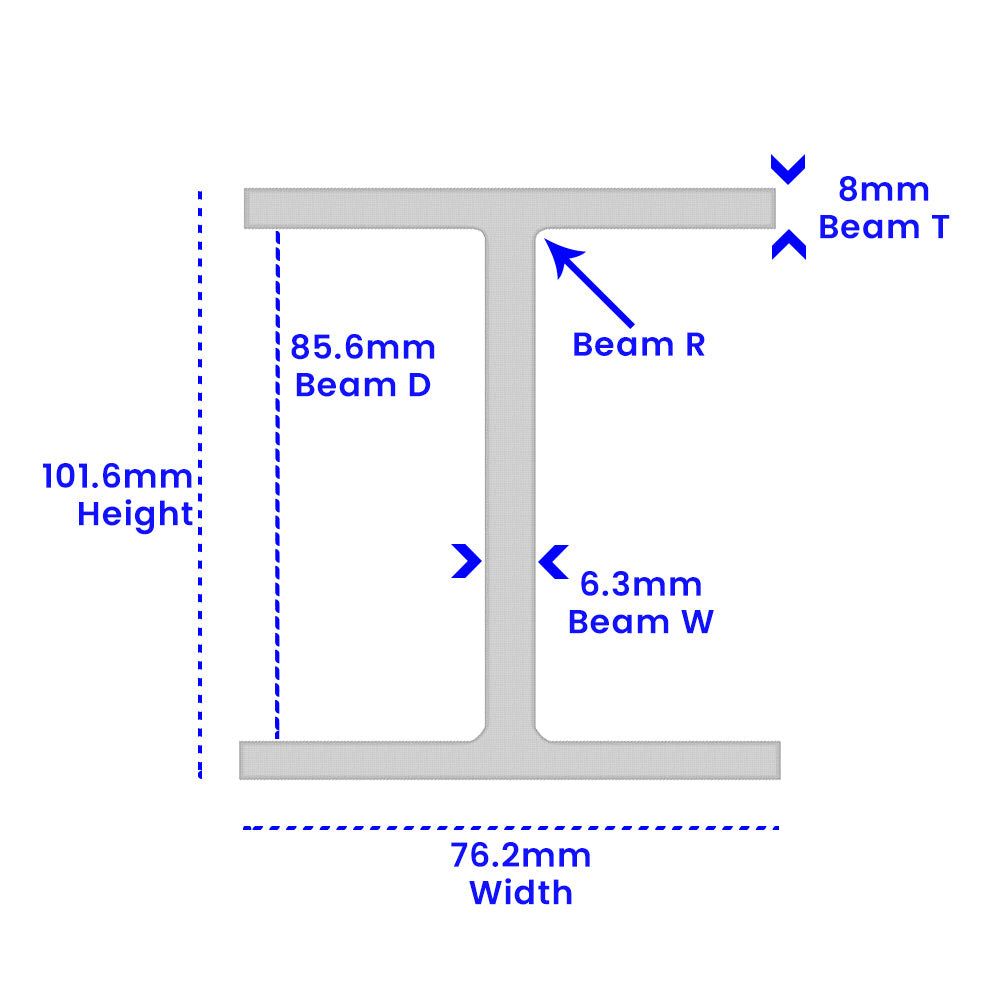

Beam Dimensions:

• Beam Depth (D): 85.6mm
• Flange Thickness (T): 8mm
• Web Thickness (W): 6.3mm

These dimensions provide key information about the geometry of the I-Beam, aiding in structural design and compatibility assessments.

Corrosion Resistance: The I-Beam exhibits excellent corrosion resistance, making it well-suited for applications where exposure to moisture or corrosive environments is a concern. This property ensures a prolonged lifespan and durability of the material.

Finish: The I-Beam comes with a Mill Finish. Mill finish refers to the untreated surface as it comes straight from the manufacturing process, often displaying a smooth and shiny appearance.

Grade: This Aluminium I-Beam belongs to Grade 6082. The choice of grade is significant as it signifies specific compositions and properties. Grade 6082 is known for its good machinability, weldability, and high corrosion resistance, making it suitable for various industrial applications.

Height: The height of the I-Beam is specified as 101.6mm, indicating the vertical distance from the bottom to the top of the beam's cross-section.

Width: The width of the I-Beam is specified as 76.2mm, indicating the horizontal distance between the outer edges of the flanges.

Weight/Metre (Kg): The weight per meter of this I-Beam is specified as 4.9 kilograms. This information is crucial for determining the overall weight of the material required for a specific application and aids in design and planning.
