SAE 660 Bronze Tube 89.6mm OD x 37.3mm ID, Mill Finish, 25.4mm Wall, 49kg/m, Poor Weldability, Fair Corrosion Resistance - Linear Metre

SAE 660 Bronze Tube 89.6mm OD x 37.3mm ID, Mill Finish, 25.4mm Wall, 49kg/m, Poor Weldability, Fair Corrosion Resistance - Linear Metre

IndustrialSafety-UK.co.uk


Get Your Free Custom Cutting Quote Below

Please ensure your measurements are accurate when placing an order, as custom-cut items cannot be returned.
Additionally, please be aware that our cutting tolerances are -0 +3 mm.




OR

Buy Fixed Sizes Below

Dimensions:
Price
Save £-1,462.95
/
Enter Length In Metres
Tax included. Shipping calculated at checkout.

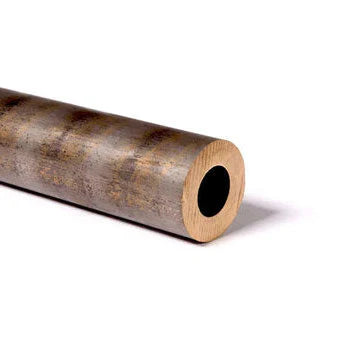

This product is a high-quality SAE660 Bronze tube, known for its durability and versatile applications. The tube has an outer diameter (OD) of 88.9mm (3 1/2") and an inner diameter (ID) of 38.1mm (1 1/2"). The actual supplied measurements are slightly larger, with an outside diameter of 89.6mm and an internal diameter of 37.3mm. The tube is characterized by a substantial wall thickness of 25.4mm, contributing to its weight of 49 kg per meter.

The material used is SAE660 Bronze, which is commonly appreciated for its excellent bearing properties, resistance to wear, and adequate corrosion resistance, though it is not highly weldable. The tube has a mill finish, providing a raw, unpolished surface suitable for various industrial applications, particularly in settings where resistance to friction and moderate corrosion is required.

Specifications

Maximum Cut Length 3 Metres
Material Bronze
Outside Diameter (Supplied) 89.6mm
Weldability Poor
Internal Diameter (Supplied) 37.3mm
Shape Tube / Pipe
Corrosion Resistance Fair
Diameter 88.9mm
Finish Mill Finish
Grade SAE660
Outside Diameter 88.9mm
Thickness 25.4mm
Wall Thickness 25.4mm
Weight/Metre (Kg) 49
