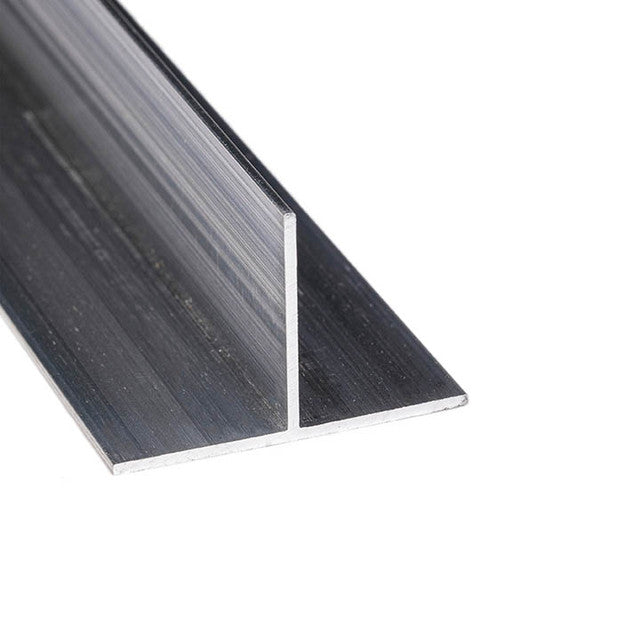

Material: The T-Section is made from aluminum, a lightweight and corrosion-resistant metal known for its versatility and durability.
Weldability: The aluminum used in this T-Section exhibits fair weldability. While it can be welded, additional care and attention may be needed during the welding process to ensure optimal results.
Shape: As the name suggests, the T-Section is characterized by its T-shaped cross-section.
Corrosion Resistance: Featuring excellent corrosion resistance, the aluminum T-Section is well-suited for applications where exposure to moisture and other corrosive elements is a concern.
Finish: The T-Section features a Mill Finish, indicating the untreated surface of the aluminum as it comes from the extrusion process.
Grade: The aluminum used in this T-Section is of Grade 6082, a heat-treatable alloy known for its high strength and excellent corrosion resistance.
Height: The specified height of the T-Section is 38.1mm. This dimension is crucial for determining the structural profile and load-bearing capacity of the section in various applications.
Thickness: The specified thickness of the T-Section is 3.2mm. This dimension is important for assessing the overall strength and durability of the section.
Width: The specified width of the T-Section is 38.1mm. This dimension, combined with the height, defines the overall geometry of the T-Section.
Weight/Metre (Kg): The weight of one meter of this T-Section is 0.63 kilograms. This weight specification is essential for calculating material requirements.
Specifications
| Maximum Length |
5 Metres |
| Material |
Aluminium |
| Weldability |
Fair |
| Shape |
T-Section |
| Corrosion Resistance |
Excellent |
| Finish |
Mill Finish |
| Grade |
6082 |
| Height |
38.1mm |
| Thickness |
3.2mm |
| Width |
38.1mm |
| Weight/Metre (Kg) |
0.63 |
